| Part # | Model # | Type | Sub Category | Amps | Volts | Rackmount Length | Cord Length | Plug Type | Receptacle (QTY) | Local Meter | Universal | Upgradeable | RCM-B | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VP4G31A1 | MG05M1R1-10L133-3PS6B2H10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230V, 7.3kW, Horizontal, (10) Locking IEC C13, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 19in / 483mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP4G31A0 | MG05M1R1-06L193-3PS56B2H10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230/400V WYE, 22.0kW, Horizontal, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 19in / 483mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP4G21A1 | MG05M1R0-09P633-2PS56B2H10-S |
Show Description
rPDU, Monitored Unit Level EC, 16A, 230/400V WYE, 11.0kW, Horizontal, (6) Locking IEC C13, (3) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 16A | 230/400V WYE | 19in / 483mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP4G21A0 | MG05M1R0-10L133-2PS6B2H10-S |
Show Description
rPDU, Monitored Unit Level EC, 16A, 230V, 3.6kW, Horizontal, (10) Locking IEC C13, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 16A | 230V | 19in / 483mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP3N3100 | MN01D1R1-12CF18-3TL6A0H10-S |
Show Description
rPDU, Metered Upgradeable, 30A, 208V, 4.9kW, Horizontal, (12) Combination C13/C19, 10ft power cord with L6-30P, Black Powder Coat.
|
Metered | Upgradeable | 30A | 208V | 19in / 483mm | 10ft | NEMA Twist Lock |
|
Y | N | Y | N | |
| VP1UA0A1 | MU01X5B1-36CF13-8HW56A9BXX-S |
Show Description
rPDU, Basic Upgradeable, 80A, 200-240/346-415V WYE, 57.6kW, Vertical, (36) Combination C13/C19, Hardwired, Black Powder Coat.
|
Basic | Upgradeable | 80A | 240/415V WYE | 66in / 1683mm | None | Hardwired |
|
N | N | Y | N | |
| VP1U62A1 | MU01XDR1-24CF13-6PS56B4H10-S-A |
Show Description
rPDU, Basic Upgradeable, 60/63A, 200-240/346-415V WYE, 43.4kW, Horizontal, (24) Combination C13/C19, 10ft power cord with 3P+N+E (IP44), Black Powder Coat.
|
Basic | Upgradeable | 60/63A | 240/415V WYE | 19in / 483mm | 10ft | IEC Splashproof |
|
N | N | Y | N | |
| VP1NA0A0 | MN01XPB1-24CF18-8HW15A9BXX-S |
Show Description
rPDU, Basic Upgradeable, 80A, 208V Delta, 28.8kW, Vertical, (24) Combination C13/C19, Hardwired, Black Powder Coat.
|
Basic | Upgradeable | 80A | 208V DELTA | 66in / 1683mm | None | Hardwired |
|
N | N | Y | N | |

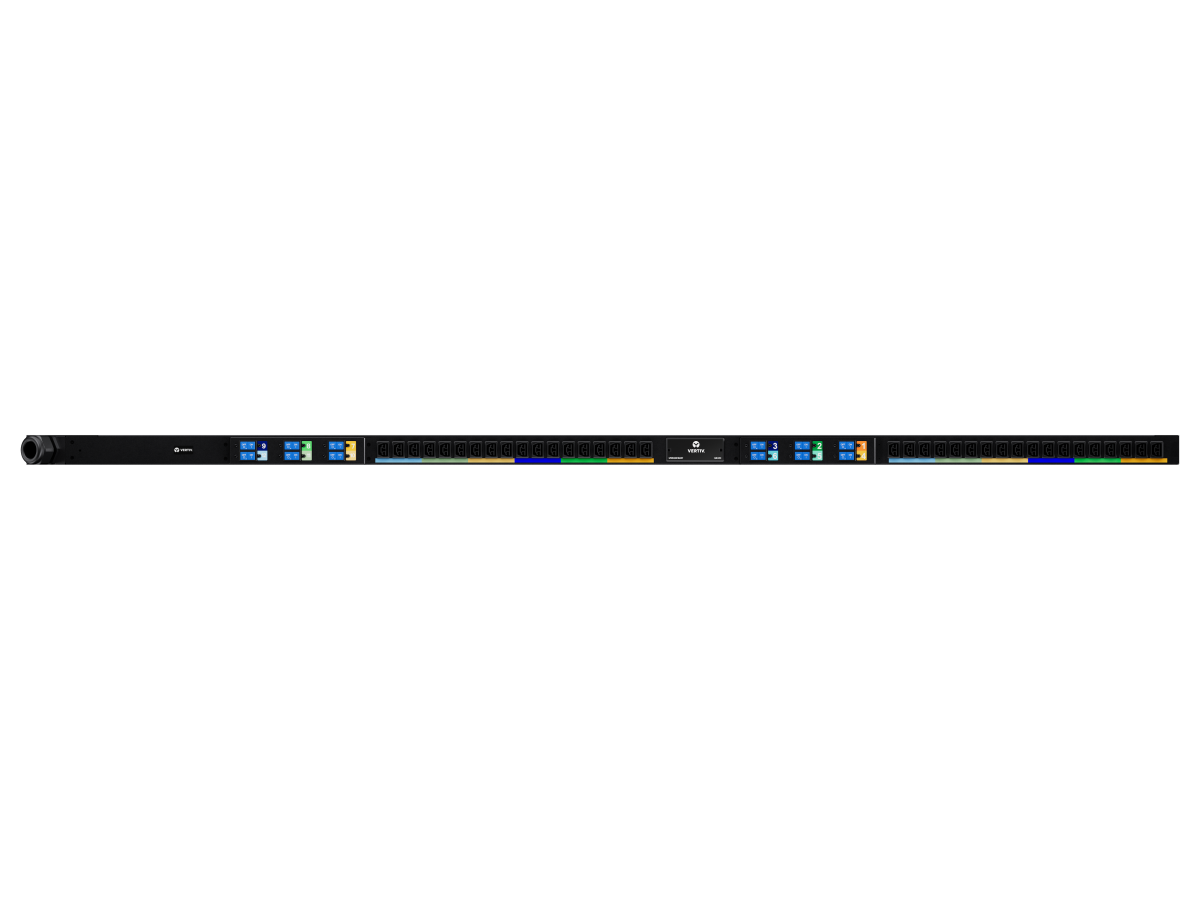

| VP1N60AJ | PMN01X5Z1-36SD43-6PS22D7D10-S |
Show Description
rPDU, Basic Upgradeable, 60A, 277/480V WYE, 39.8kW, Vertical, (36) Anderson 2005N4 Keyed SAF-D Grid Connectors, 10 ft power cord with 3P+N+E (IP67), Black Powder Coat.
|
Basic | Upgradeable | 60A | 277/480V WYE | 82in / 2083mm | 10ft | IEC Watertight |
|
N | N | Y | N | |
| VP1N31A6 | PMN01XZ31-12SD43-3TL22A0H10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 277/480V WYE, 19.9kW, Horizontal, (12) Anderson 2005N4 Keyed SAF-D Grid Connectors, 10 ft power cord with NEMA L22-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 277/480V WYE | 19in / 483mm | 10ft | NEMA Twist Lock |
|
N | N | Y | N | |

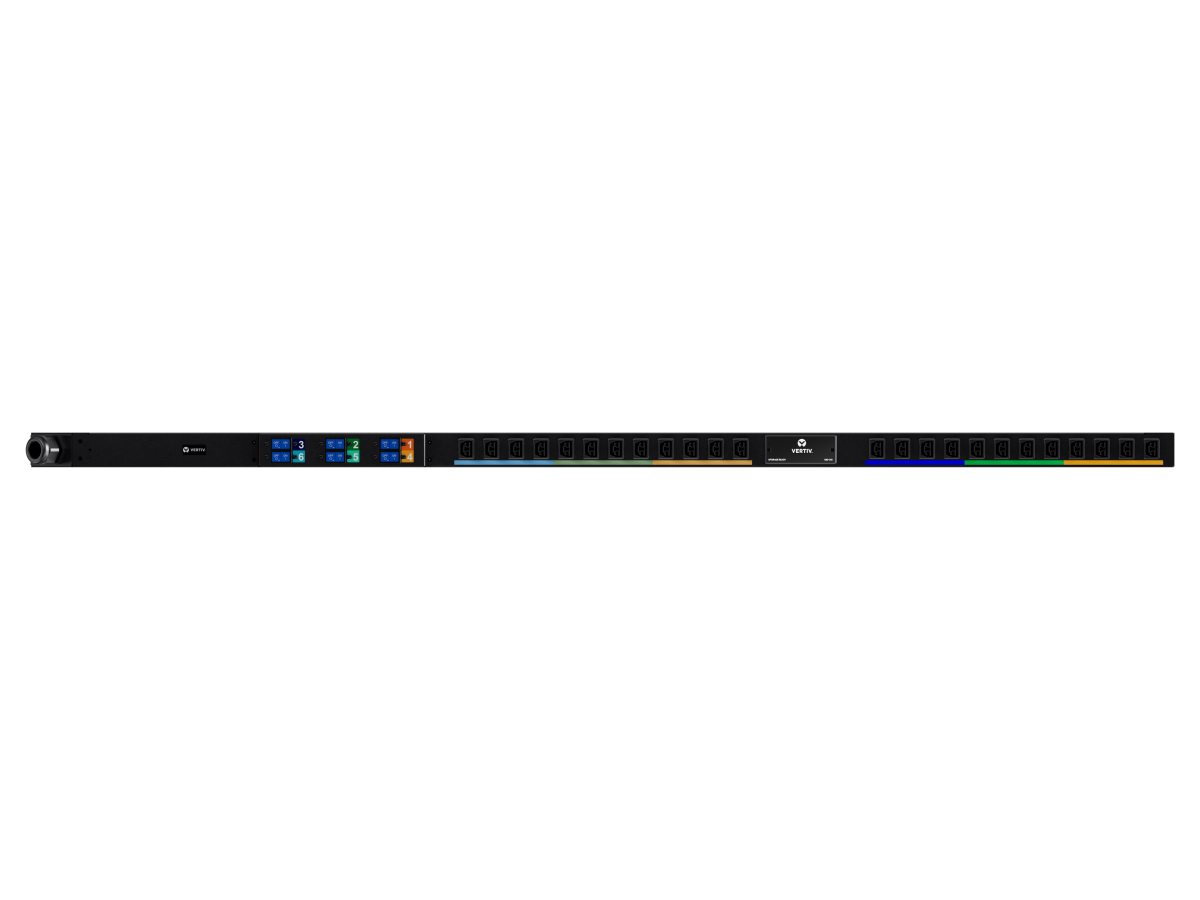

| VP1N30AU | PMN01X4Z1-24SD43-3TL22A0D10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 277/480V WYE, 19.9kW, Vertical, (24) Anderson 2005N4 Keyed SAF-D Grid Connectors, 10 ft power cord with NEMA L22-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 277/480V WYE | 66in / 1683mm | 10ft | NEMA Twist Lock |
|
N | N | Y | N | |
| VP1N30AT | PMN01X5Z1-36SD43-3TL22A0D10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 277/480V WYE, 19.9kW, Vertical, (36) Anderson 2005N4 Keyed SAF-D Grid Connectors, 10 ft power cord with NEMA L22-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 277/480V WYE | 70in / 1778mm | 10ft | NEMA Twist Lock |
|
N | N | Y | N | |
| VA7U21A0 | AUU5M1R5-06CF17-2C20C20A900-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 16A OR 20A, 120V or 208V or 230V, 1.9kW or 3.3kW or 3.6kW, Horizontal, (6) Combination C13/C19, C20, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 16A OR 20A | 120V OR 208V OR 230V | 19in / 483mm | None | IEC |
|
Y | N | Y | N | |
| VA7U11A0 | AUU5M1R5-06L137-1C14C14A900-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 10A or 15A, 120V or 208V or 230V, 1.4kW or 2.4kW or 2.3kW, Horizontal, (6) Locking IEC C13, C14, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 10A or 15A | 120V OR 208V OR 230V | 19in / 483mm | None | IEC |
|
Y | N | Y | N | |
| VA7N32A0 | ANU5M2R6-12S203-3TL5TL5A011-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 30A, 120V, 2.8kW, Horizontal, (12) NEMA 5-20R, 10ft / 3m power cords with L5-30P, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 30A | 120V | 19in / 483mm | 10ft / 3m | NEMA Twist Lock |
|
Y | N | Y | N | |
| VA7N31A0 | ANU5M1R6-06CF18-3TL6TL6A011-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 30A, 208V, 4.9kW, Horizontal, (6) Combination C13/C19, 10ft / 3m power cords with L6-30P, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 30A | 208V | 19in / 483mm | 10ft / 3m | NEMA Twist Lock |
|
Y | N | Y | N | |
| VA7N21A1 | ANU5M1R5-06S203-2TL5TL5A011-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 20A, 120V, 1.9kW, Horizontal, (6) NEMA 5-20R, 10ft / 3m power cords with L5-20P, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 20A | 120V | 19in / 483mm | 10ft / 3m | NEMA Twist Lock |
|
Y | N | Y | N | |
| VA7N21A0 | ANU5M1R5-06S203-2ST5ST5A011-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 20A, 120V, 1.9kW, Horizontal, (6) NEMA 5-20R, 10ft / 3m power cords with 5-20P, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 20A | 120V | 19in / 483mm | 10ft / 3m | NEMA Straight Blade |
|
Y | N | Y | N | |
| VA7N11A0 | ANU5M1R5-06S153-1ST5ST5A011-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 15A, 120V, 1.4kW, Horizontal, (6) NEMA 5-15R, 10ft / 3m power cords with 5-15P, Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 15A | 120V | 19in / 483mm | 10ft / 3m | NEMA Straight Blade |
|
Y | N | Y | N | |
| VA7G32A0 | AGU5M2R6-12CF13-3PS6PS6B211-D |
Show Description
rPDU, Rack Transfer Switch Switched Outlet Level Monitoring, 32A, 230V, 7.3kW, Horizontal, (12) Combination C13/C19, 10ft / 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Rack Transfer Switch | Switched Outlet Level Monitoring | 32A | 230V | 19in / 483mm | 10ft / 3m | IEC Splashproof |
|
Y | N | Y | N |
