VP1N31A6
Part #: VP1N31A6
Model Number:
PMN01XZ31-12SD43-3TL22A0H10-S
Category:
Basic
Sub Category:
Upgradeable
Power Configuration:
30A, 277/480V WYE, 19.9kW
Physical Configuration:
19in / 483mm, Horizontal
Product Summary:

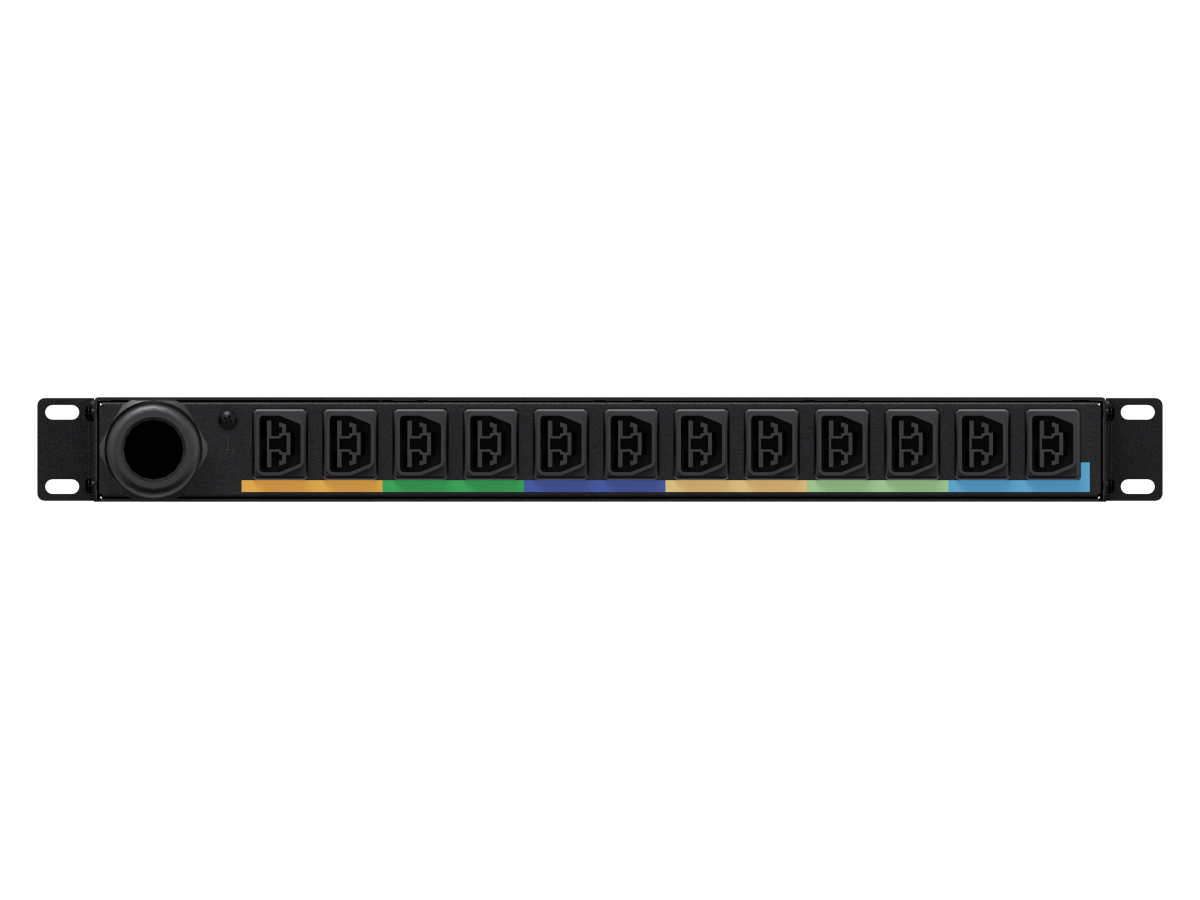

rPDU, Basic Upgradeable, 30A, 277/480V WYE, 19.9kW, Horizontal, (12) Anderson 2005N4 Keyed SAF-D Grid Connectors, 10 ft power cord with NEMA L22-30P, Black Powder Coat.
Monitoring:
No Monitoring (Upgradeable with IMD module)
Plug Form:
L22-30PReceptacle:
SAF-D GRID (Quantity: 12)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | No Monitoring (Upgradeable with IMD module) |
| Quantity Of Inputs | 1 |
| Voltage | 277/480V WYE |
| Current | 30A x 3 Phase WYE |
| VA per Input (Load Capacity) | 19.9kW (277V) |
| Frequency | 50/60Hz |
| Over Current Protection | (6) 20A Single Pole Magnetic Breakers (10kAIC Rated) |
| Switch | Breaker/Switch Combination |
| Power Cable Wire Gauge | 10/5 |
| Power Cable Length | 10ft / 3m |
| Power Entry Location | Rear |
| Plug Type | NEMA L22-30P Twistlock |
| Receptacle/Socket Type #1 | Anderson SAF-D Grid Connector 2005N4 Keyed |
| - Quantity on Face | 12 |
| - Quantity per Breaker | 2 |
| - Quantity per Phase | 4 |
| - Circuit Color ID | 6 Circuit = Orange, Light Orange, Green, Light Green, Blue, Light Blue |
| - Style | Individual |
| - Voltage per Receptacle/Socket | 277V (L-N) |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 1U |
| Adjustable Mount Brackets | Yes |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | ETL & c-ETL Listed to UL 62368-1 |
| Certification/Agency Approvals | FCC Part 15 Class A Conformance |
| Chassis Dimensions (HxWxD) | 1.72in x 17in x 12in / 44mm x 432mm x 305mm |
| Shipping Weight | 30 lbs (13.6 kg) |
