| Part # | Model # | Type | Sub Category | Amps | Volts | Rackmount Length | Cord Length | Plug Type | Receptacle (QTY) | Local Meter | Universal | Upgradeable | RCM-B | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

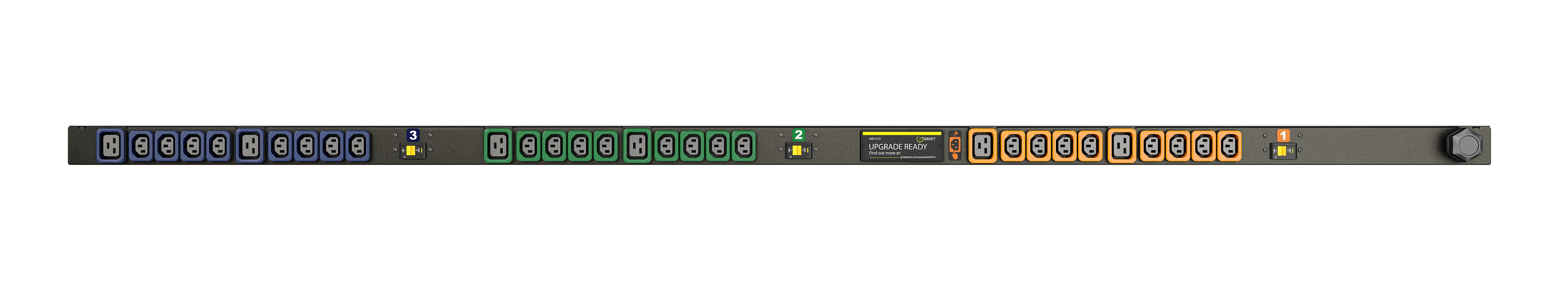

| PI10015L | MP01X4W1-30PN68-4CS15A5A10-S |
Show Description
rPDU, Basic Upgradeable, 35A, 200V DELTA, 12.1kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+E CA, Black Powder Coat.
|
Basic | Upgradeable | 35A | 200V Delta | 72in / 1829mm | 3m | California Style |
|
N | N | Y | N | |

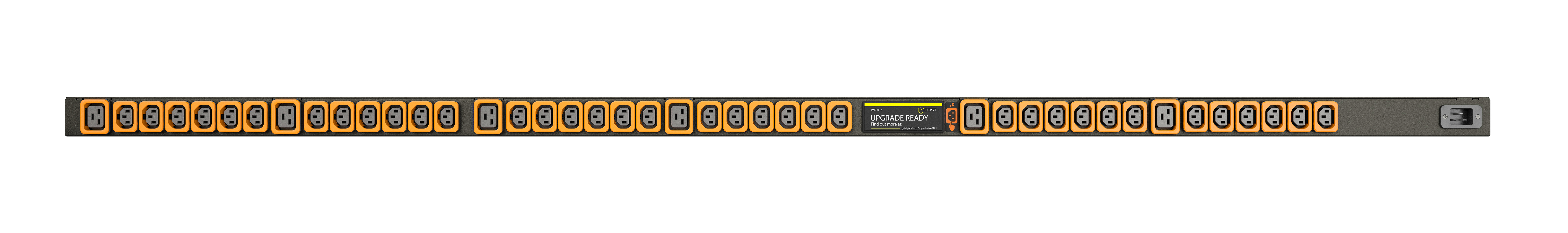

| PI10014L | MP01X4W0-42PZ67-2C20A9A00-S |
Show Description
rPDU, Basic Upgradeable, 20A, 100V or 200V, 2.0 or 4.0kW, Vertical, (36) Locking IEC C13, (6) Locking IEC C19, C20, Black Powder Coat.
|
Basic | Upgradeable | 20A | 100V or 200V | 72in / 1829mm | None | IEC |
|
N | N | Y | N | |
| PI10011 | MP01D4W1-42IZ68-3JL15A5A10-S |
Show Description
rPDU, Metered Upgradeable, 30A, 200V DELTA, 10.3kW, Vertical, (36) IEC C13, (6) IEC C19, 3m power cord with L15-30P, Black Powder Coat.
|
Metered | Upgradeable | 30A | 200V Delta | 72in / 1829mm | 3m | JIS |
|
Y | N | Y | N | |
| PI10010 | MP01X4W1-42IZ68-3JL15A5A10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 200V DELTA, 10.3kW, Vertical, (36) IEC C13, (6) IEC C19, 3m power cord with L15-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 200V Delta | 72in / 1829mm | 3m | JIS |
|
N | N | Y | N | |

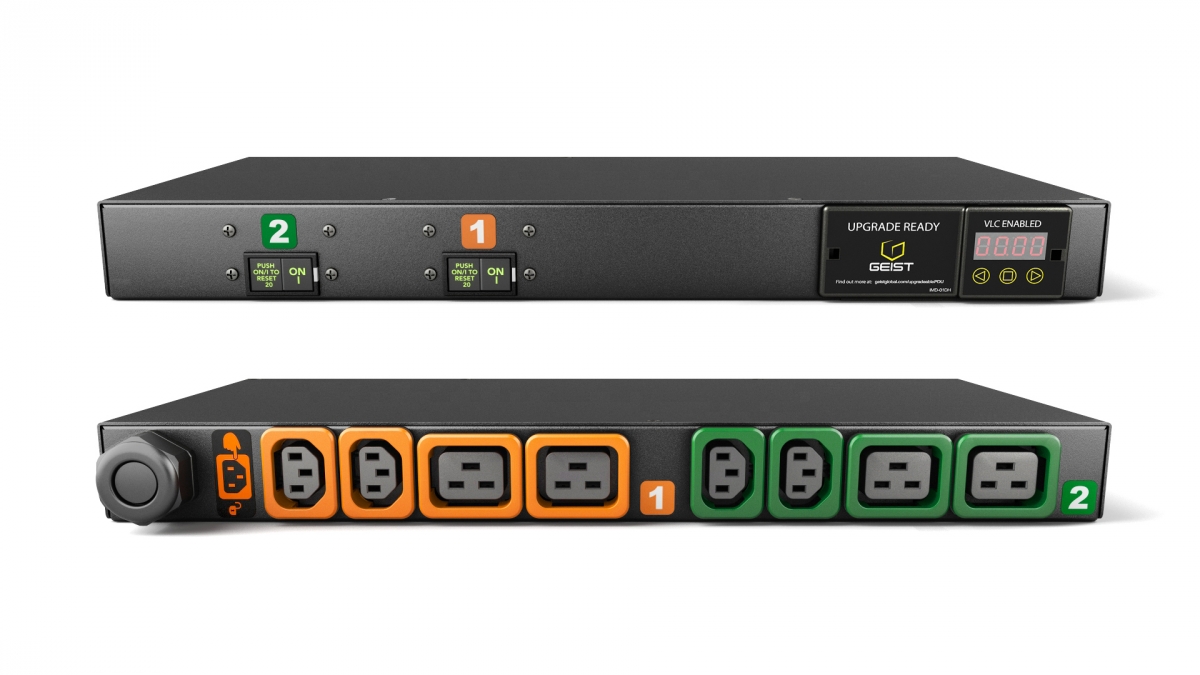

| PI10009L | MP01D1R1-08P448-3JL6A5H10-S |
Show Description
rPDU, Metered Upgradeable, 30A, 200V, 6.0kW, Horizontal, (4) Locking IEC C13, (4) Locking IEC C19, 3m power cord with L6-30P, Black Powder Coat.
|
Metered | Upgradeable | 30A | 200V | 19in / 483mm | 3m | JIS |
|
Y | N | Y | N | |
| PI10008L | MP01X4W1-30PN68-3JL15A5A10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 200V DELTA, 10.3kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with L15-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 200V Delta | 72in / 1829mm | 3m | JIS |
|
N | N | Y | N | |

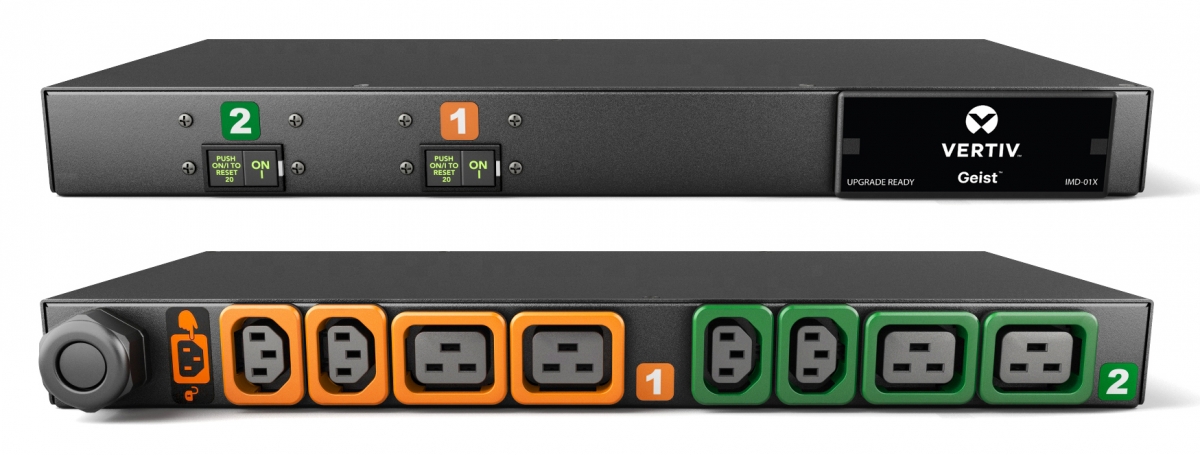

| PI10007L | MP01X1R1-08P448-3JL6A5H10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 200V, 6.0kW, Horizontal, (4) Locking IEC C13, (4) Locking IEC C19, 3m power cord with L6-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 200V | 19in / 483mm | 3m | JIS |
|
N | N | Y | N | |

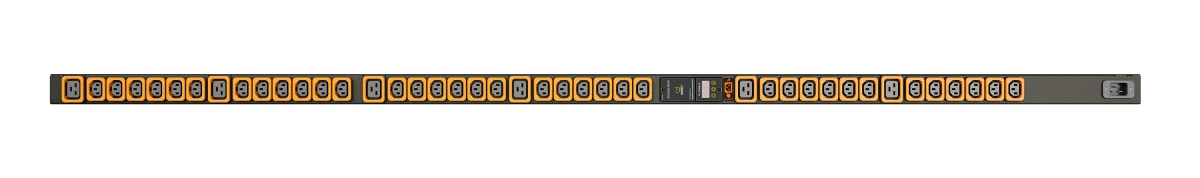

| PI10006L | MP01D4W0-42PZ67-2C20A9A00-S |
Show Description
rPDU, Metered Upgradeable, 20A, 100V or 200V, 2.0 or 4.0kW, Vertical, (36) Locking IEC C13, (6) Locking IEC C19, C20, Black Powder Coat.
|
Metered | Upgradeable | 20A | 100V or 200V | 72in / 1829mm | None | IEC |
|
Y | N | Y | N | |
| PI10005L | MP01D4W1-30PN68-3JL15A5A10-S |
Show Description
rPDU, Metered Upgradeable, 30A, 200V DELTA, 10.3kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with L15-30P, Black Powder Coat.
|
Metered | Upgradeable | 30A | 200V Delta | 72in / 1829mm | 3m | JIS |
|
Y | N | Y | N | |
| PI10004L | MP01D4W1-36PT68-3JL6A5A10-S |
Show Description
rPDU, Metered Upgradeable, 30A, 200V, 6.0kW, Vertical, (30) Locking IEC C13, (6) Locking IEC C19, 3m power cord with L6-30P, Black Powder Coat.
|
Metered | Upgradeable | 30A | 200V | 72in / 1829mm | 3m | JIS |
|
Y | N | Y | N | |

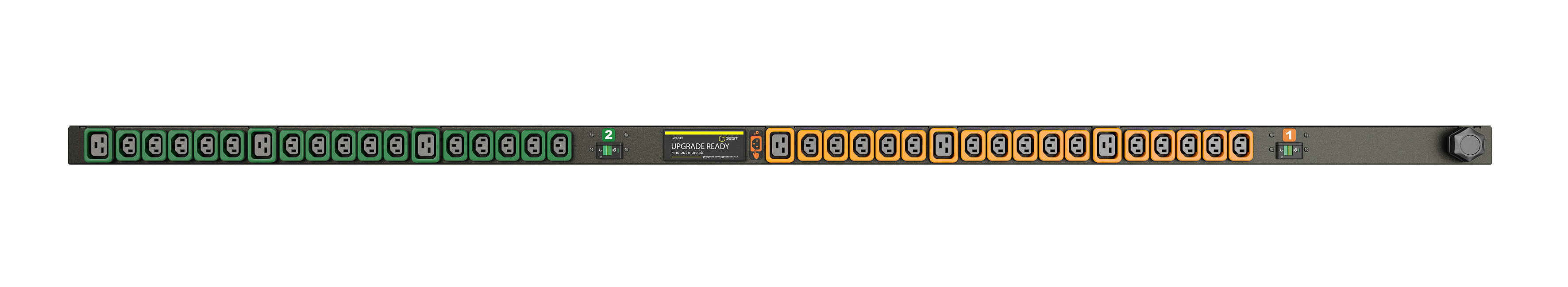

| PI10003L | MP01X4W1-36PT68-3JL6A5A10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 200V, 6.0kW, Vertical, (30) Locking IEC C13, (6) Locking IEC C19, 3m power cord with L6-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 200V | 72in / 1829mm | 3m | JIS |
|
N | N | Y | N | |

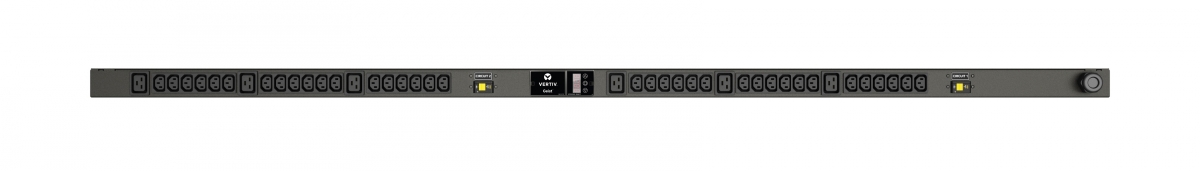

| PI10002 | MP01D4W1-42IZ68-3JL6A5A10-S |
Show Description
rPDU, Metered Upgradeable, 30A, 200V, 6.0kW, Vertical, (36) IEC C13, (6) IEC C19, 3m power cord with L6-30P, Black Powder Coat.
|
Metered | Upgradeable | 30A | 200V | 70in / 1778mm | 3m | JIS |
|
Y | N | Y | N | |
| PI10001 | MP01X4W1-42IZ68-3JL6A5A10-S |
Show Description
rPDU, Basic Upgradeable, 30A, 200V, 6.0kW, Vertical, (36) IEC C13, (6) IEC C19, 3m power cord with L6-30P, Black Powder Coat.
|
Basic | Upgradeable | 30A | 200V | 70in / 1778mm | 3m | JIS |
|
N | N | Y | N | |
| P1027 | PXPR120-103C13JL6 |
Show Description
rPDU, Basic Standard, 30A, 200V, 6.0kW, Horizontal, (12) IEC C13, 3m power cord with L6-30P, Black Powder Coat.
|
Basic | Standard | 30A | 200V | 19in / 483mm | 3m | JIS |
|
N | N | N | N | |
| P1025 | PVHVRCN102-102I82JS6 |
Show Description
rPDU, Metered Standard, 20A, 200V, 4.0kW, Horizontal, (8) IEC C13, (2) IEC C19, 3m power cord with 6-20P, Black Powder Coat.
|
Metered | Standard | 20A | 200V | 19in / 483mm | 3m | JIS |
|
Y | N | N | N | |
| GI10098 | MG01D4W1-36CF13-3PS56B2A10-S-A |
Show Description
rPDU, Metered Upgradeable, 32A, 230/400V WYE, 22.0kW, Vertical, (36) Combination C13/C19, 10ft power cord with 3P+N+E (IP44), Black Powder Coat.
|
Metered | Upgradeable | 32A | 230/400V WYE | 70in / 1778mm | 10ft | IEC Splashproof |
|
Y | N | Y | N | |
| GI10096 | MG01D4B0-36CF13-2PS56B2A10-S-A |
Show Description
rPDU, Metered Upgradeable, 16A, 230/400V WYE, 11.0kW, Vertical, (36) Combination C13/C19, 10ft power cord with 3P+N+E (IP44), Black Powder Coat.
|
Metered | Upgradeable | 16A | 230/400V WYE | 66in / 1683mm | 10ft | IEC Splashproof |
|
Y | N | Y | N | |
| GI10094 | MG01X4W1-36CF13-3PS56B2A10-S-A |
Show Description
rPDU, Basic Upgradeable, 32A, 230/400V WYE, 22.0kW, Vertical, (36) Combination C13/C19, 10ft power cord with 3P+N+E (IP44), Black Powder Coat.
|
Basic | Upgradeable | 32A | 230/400V WYE | 70in / 1778mm | 10ft | IEC Splashproof |
|
N | N | Y | N | |
| GI10092 | MG01X4B0-36CF13-2PS56B2A10-S-A |
Show Description
rPDU, Basic Upgradeable, 16A, 230/400V WYE, 11.0kW, Vertical, (36) Combination C13/C19, 10ft power cord with 3P+N+E (IP44), Black Powder Coat.
|
Basic | Upgradeable | 16A | 230/400V WYE | 66in / 1683mm | 10ft | IEC Splashproof |
|
N | N | Y | N | |
| GI10075L | MG01X5W0-42PZ63-2PS56B2A10-S-A |
Show Description
rPDU, Basic Upgradeable, 16A, 230/400V WYE, 11.0kW, Vertical, (36) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Basic | Upgradeable | 16A | 230/400V WYE | 75in / 1905mm | 3m | IEC Splashproof |
|
N | N | Y | N |
