Vertiv^™ PowerIT rPDU

Overview

Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet.

With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
Reliable rack power distribution.
Every unit is 100% tested for reliability and functionality.
Simple and convenient configuration options for cord lengths and chassis colors.
Standard five-year limited warranty.

VP1NA2A0

Part #: VP1NA2A0

This product is coming soon. Please contact your sales representative for more information.

Model Number:

PMN01XZA1-15SD43-8HW22A9DXX-S

Category:

Basic

Sub Category:

Upgradeable

Power Configuration:

80A, 277/480V WYE, 66.4kW

Physical Configuration:

19in / 483mm, Horizontal

Product Summary:

rPDU, Basic Upgradeable, 80A, 277/480V WYE, 66.4kW, Horizontal, (15) Anderson 2005N4 Keyed SAF-D Grid Connectors, Hard Wired, Black Powder Coat.

Monitoring:

No Monitoring (Upgradeable with IMD module)

Plug Form:

Hardwired

Receptacle:

SAF-D GRID (Quantity: 15)

Chassis Color Options:

To discuss color options, contact your local sales representative.

System Features

Monitoring	No Monitoring (Upgradeable with IMD module)
Quantity Of Inputs	1
Voltage	277/480V WYE
Current	80A x 3 Phase WYE
VA per Input (Load Capacity)	66.4kVA (277V)
Frequency	50/60Hz
Over Current Protection	(15) 20A Single Pole Magnetic Breakers (10kAIC Rated)
Switch	Breaker/Switch Combination
Power Entry Location	Rear
Hardwired	Wiring Access Panel - Conduit Connection Access

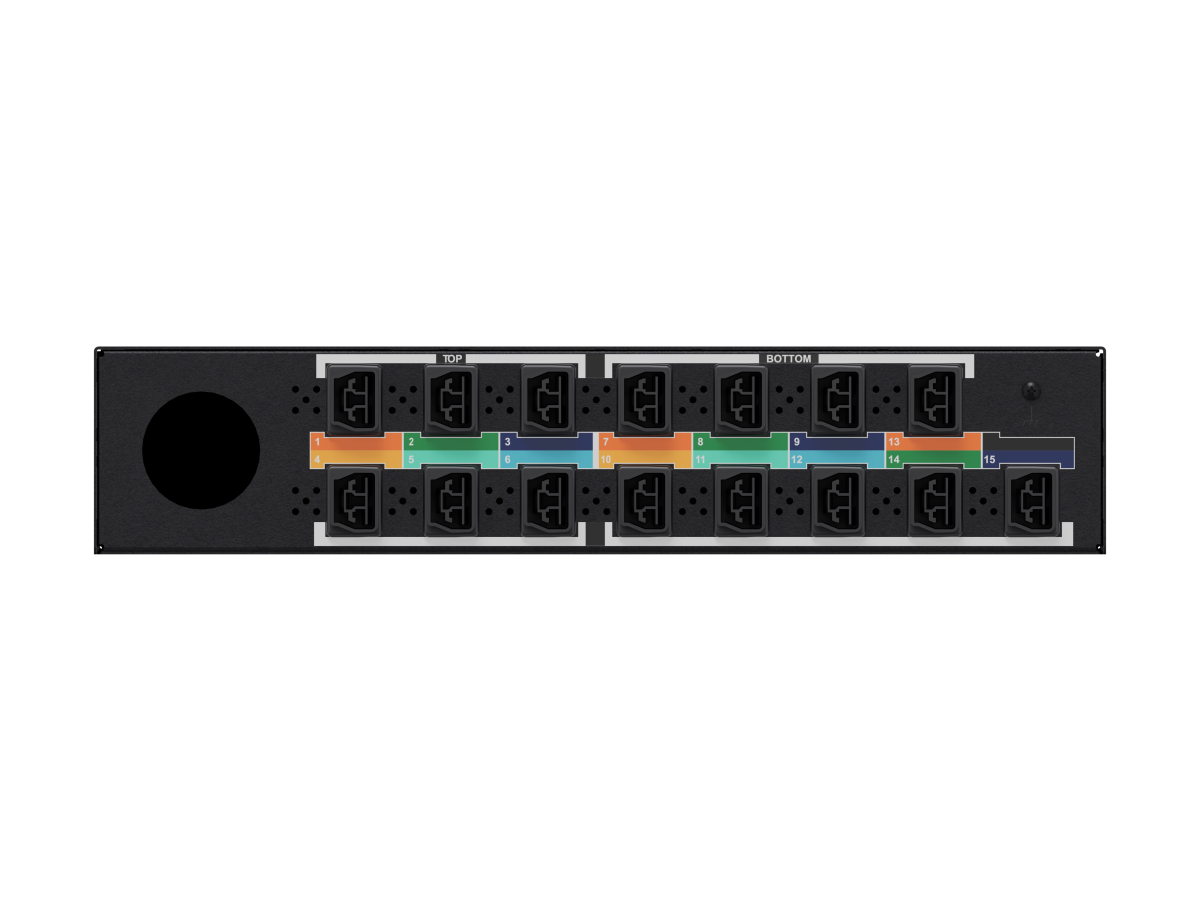

Receptacle/Socket Type #1	Anderson SAF-D Grid Connector 2005N4 Keyed
- Quantity on Face	15
- Quantity per Breaker	1
- Quantity per Phase	5
- Circuit Color ID	15 Circuit = Orange, Green, Blue, Light Orange, Light Green, Light Blue, Orange, Green, Blue, Light Orange, Light Green, Light Blue, Orange, Green, Blue
- Style	Individual
- Voltage per Receptacle/Socket	277V (L-N)
Maximum Operating Temperature	60C / 140F
Heavy Steel - Powder Coat Finish	Black
Configuration	2U
19in Recess Mount	Yes
Country of Origin	USA, TAA Compliant and Buy American Act COTS Compliant
Product Warranty	5-year limited warranty
Certification/Agency Approvals	RoHS Compliant
Certification/Agency Approvals	ETL & c-ETL Listed to UL 62368-1
Certification/Agency Approvals	FCC Part 15 Class A Conformance
Chassis Dimensions (HxWxD)	3.48in x 17in x 12in / 89mm x 432mm x 305mm
Shipping Weight	20 lbs (9.1 kg)
