VP1N62A3
Part #: VP1N62A3
Model Number:
PMN01XZA1-24SD43-6PS22D7H10-S
Category:
Basic
Sub Category:
Upgradeable
Power Configuration:
60A, 277/480V WYE, 39.8kW
Physical Configuration:
19in / 483mm, Horizontal
Product Summary:

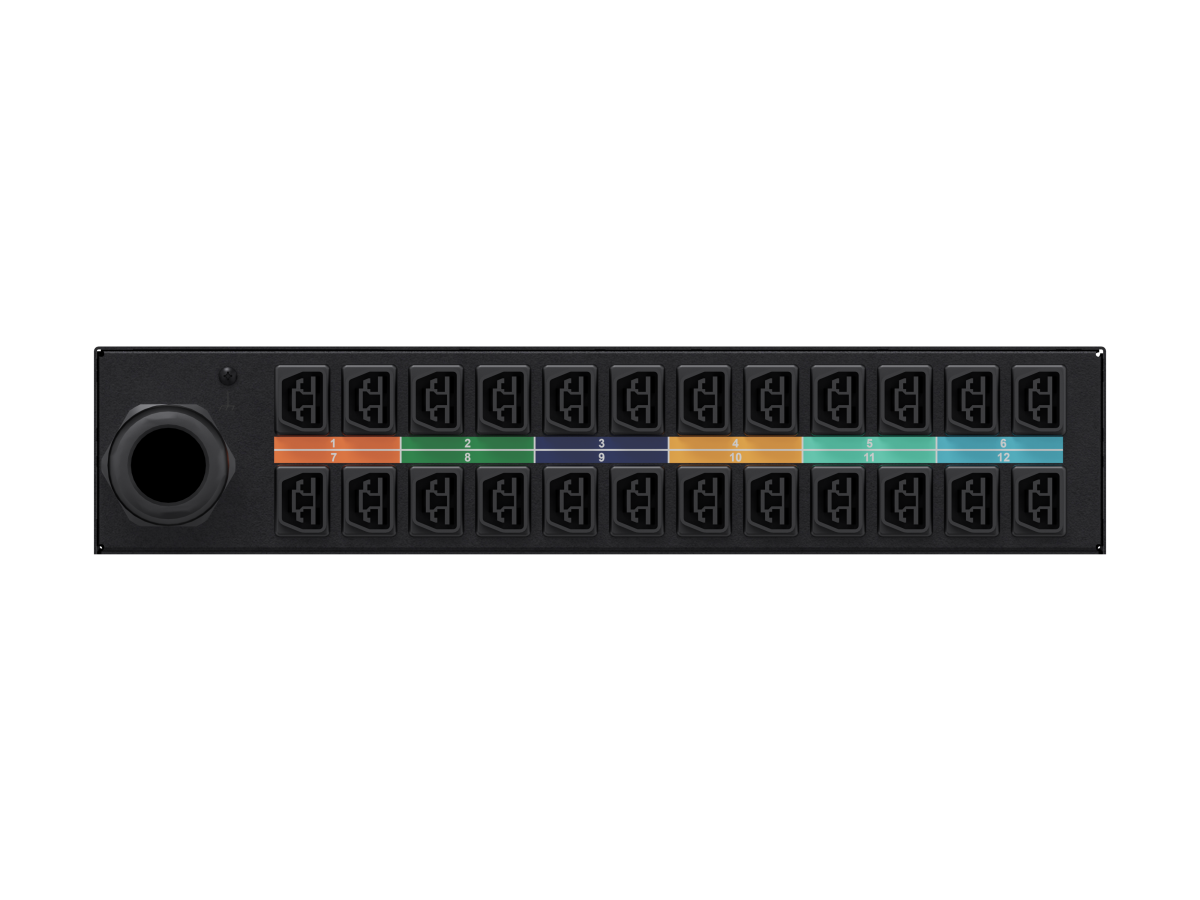

rPDU, Basic Upgradeable, 60A, 277/480V WYE, 39.8kW, Horizontal, (24) Anderson 2005N4 Keyed SAF-D Grid Connectors, 10 ft power cord with 3P+N+E (IP67), Black Powder Coat.
Monitoring:
No Monitoring (Upgradeable with IMD module)
Plug Form:
3P+N+E (IP67)Receptacle:
SAF-D GRID (Quantity: 24)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | No Monitoring (Upgradeable with IMD module) |
| Quantity Of Inputs | 1 |
| Voltage | 277/480V WYE |
| Current | 60A x 3 Phase WYE |
| VA per Input (Load Capacity) | 39.8kW (277V) |
| Frequency | 50/60Hz |
| Over Current Protection | (12) 20A Single Pole Magnetic Breakers (10kAIC Rated) |
| Switch | Breaker/Switch Combination |
| Power Cable Wire Gauge | 6/5 Type W |
| Power Cable Length | 10ft / 3m |
| Power Entry Location | Rear |
| Plug Type | IEC60309 3P + N + E, 60A, 277/480V, Watertight IP67 |
| Receptacle/Socket Type #1 | Anderson SAF-D Grid Connector 2005N4 Keyed |
| - Quantity on Face | 24 |
| - Quantity per Breaker | 2 |
| - Quantity per Phase | 8 |
| - Circuit Color ID | 12 Circuit = Orange, Green, Blue, Light Orange, Light Green, Light Blue, Orange, Green, Blue, Light Orange, Light Green, Light Blue |
| - Style | Individual |
| - Voltage per Receptacle/Socket | 277V (L-N) |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 2U |
| 19in Recess Mount | Yes |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | ETL & c-ETL Listed to UL 62368-1 |
| Certification/Agency Approvals | FCC Part 15 Class A Conformance |
| Chassis Dimensions (HxWxD) | 3.48in x 17in x 12in / 89mm x 432mm x 305mm |
| Shipping Weight | 31 lbs (14.1 kg) |
