Vertiv™ Geist™ rPDU


G2199

PDF icon Specification Sheet
PDF icon Manual

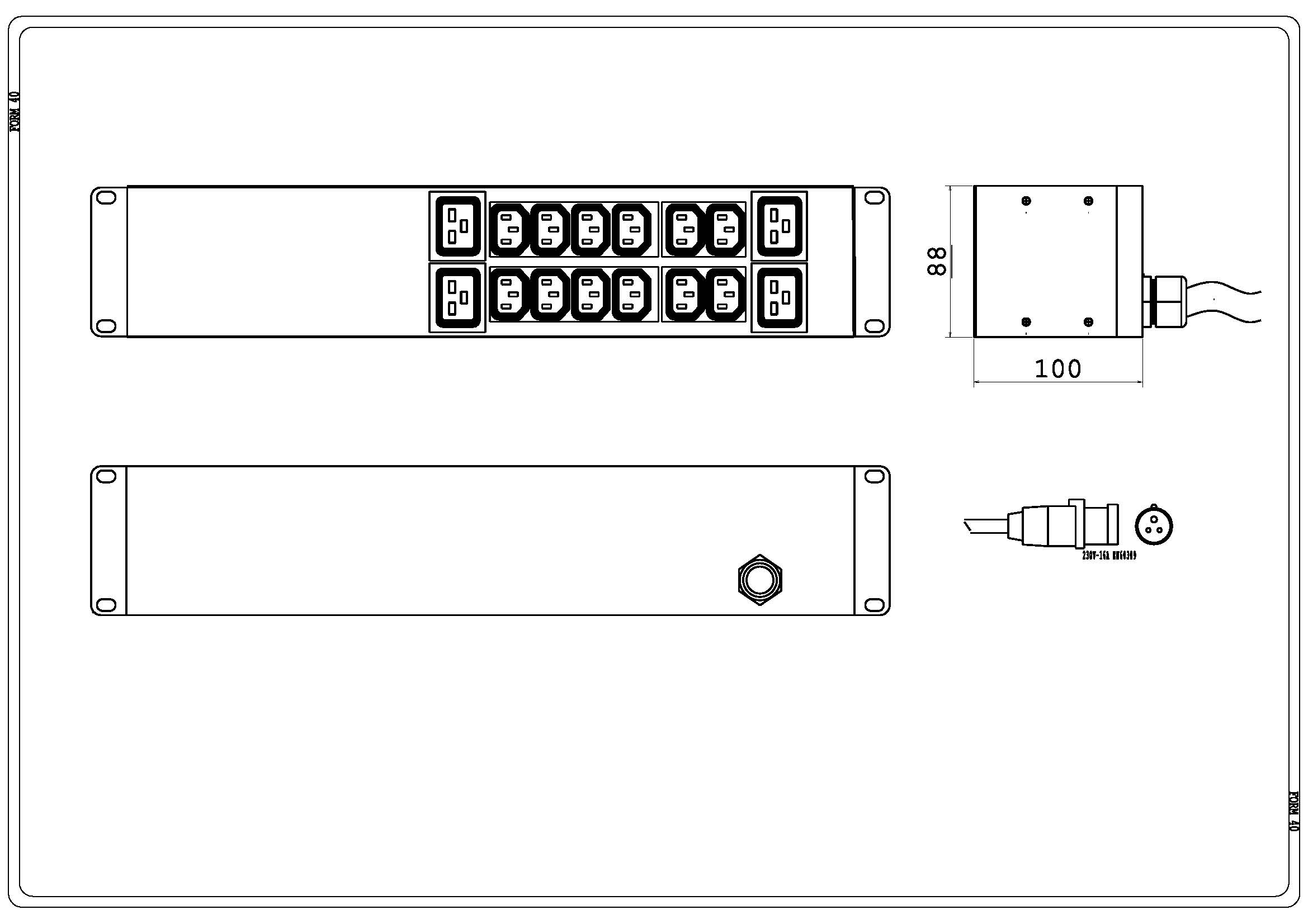

Image icon Submittal Drawing
Part #: G2199
Model Number:
MG00XPR0-16IB43-2PS6B2H10-S
Category:
Basic
Sub Category:
Standard
Power Configuration:
16A, 230V, 3.6kW
Physical Configuration:
2U 19in / 483mm, Horizontal
Product Summary:
rPDU, Basic Standard, 16A, 230V, 3.6kW, Horizontal, (12) IEC C13, (4) IEC C19, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
Plug Form:
1P+N+E (IP44)1P+N+E (IP44)
Receptacle:
IEC C13IEC C13 (Quantity: 12)
IEC C19IEC C19 (Quantity: 4)
Chassis Color Options:
To discuss color options, contact your local sales representative.

Product Specification and Options

System Features
Quantity Of Inputs1
Voltage200-240V
Current16A
VA per Input (Load Capacity)3.6kW (230V)
Frequency50/60Hz
Over Current ProtectionNone
SwitchNo
Power Cable Wire Gauge2.5mm² H07RN-F
Power Cable Length3m
Plug TypeIEC60309 1P + N + E, 16A, 250V, Splashproof IP44
Combined Total Receptacle/Socket Quantity16
Receptacle/Socket Type #1IEC C13
- Quantity on Face12
- Style2 Banks of 2, 2 Banks of 4
- Maximum Output per Receptacle/Socket10A per receptacle bank
- Voltage per Receptacle/Socket230V
Receptacle/Socket Type #2IEC C19
- Quantity on Face4
- StyleIndividual
- Maximum Output per Receptacle/Socket16A
- Voltage per Receptacle/Socket230V
Maximum Operating Temperature60C / 140F
Heavy Steel - Powder Coat FinishBlack
Configuration19in / 483mm Horizontal Rackmount
Flush MountYes
Product Warranty5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Certification/Agency ApprovalsCE Marked
Certification/Agency ApprovalsUKCA Marked
Certification/Agency ApprovalsComplies with IEC 62368-1 (DOC Available)
Certification/Agency ApprovalsComplies with EN 55032 and EN 55035
Certification/Agency ApprovalsRoHS Compliant
Certification/Agency ApprovalsCم Mark
Certification/Agency ApprovalsRCM Mark (EMC Only)
Chassis Dimensions (HxWxD)88mm x 435mm x 100mm
Shipped Weight11lbs (4.99kg)
