G2175
Part #: G2175
Model Number:
MG00XER0-12C133-7UKA6H10-S
Category:
Basic
Sub Category:
Standard
Power Configuration:
13A, 230V, 2.9kW
Physical Configuration:
19in / 483mm, Horizontal
Product Summary:

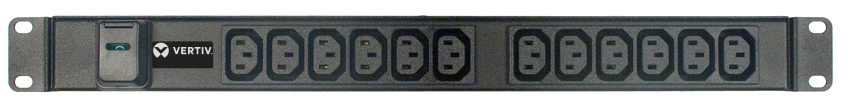

rPDU, Basic Standard, 13A, 230V, 2.9kW, Horizontal, (12) IEC C13, 3m power cord with BS1363, Black Powder Coat.
Plug Form:
BS1363Receptacle:
IEC C13 (Quantity: 12)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Quantity Of Inputs | 1 |
| Voltage | 200-240V |
| Current | 13A |
| VA per Input (Load Capacity) | 2.9kW (230V) |
| Frequency | 50/60Hz |
| Over Current Protection | None |
| Switch | Green neon with protective cover |
| Power Cable Wire Gauge | 1.5mm² PVC |
| Power Cable Length | 3m |
| Plug Type | BS 1363P |
| Receptacle/Socket Type #1 | IEC C13 |
| - Quantity on Face | 12 |
| - Style | Banks of 6 |
| - Maximum Output per Receptacle/Socket | 10A per receptacle bank |
| - Voltage per Receptacle/Socket | 230V |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 19in / 483mm Horizontal Rackmount |
| Flush Mount | Yes |
| Product Warranty | 5-year limited warranty |
| Certification/Agency Approvals | CE Marked |
| Certification/Agency Approvals | UKCA Marked |
| Certification/Agency Approvals | Complies with IEC 62368-1 (DOC Available) |
| Certification/Agency Approvals | Complies with EN 55032 and EN 55035 |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | Cم Mark |

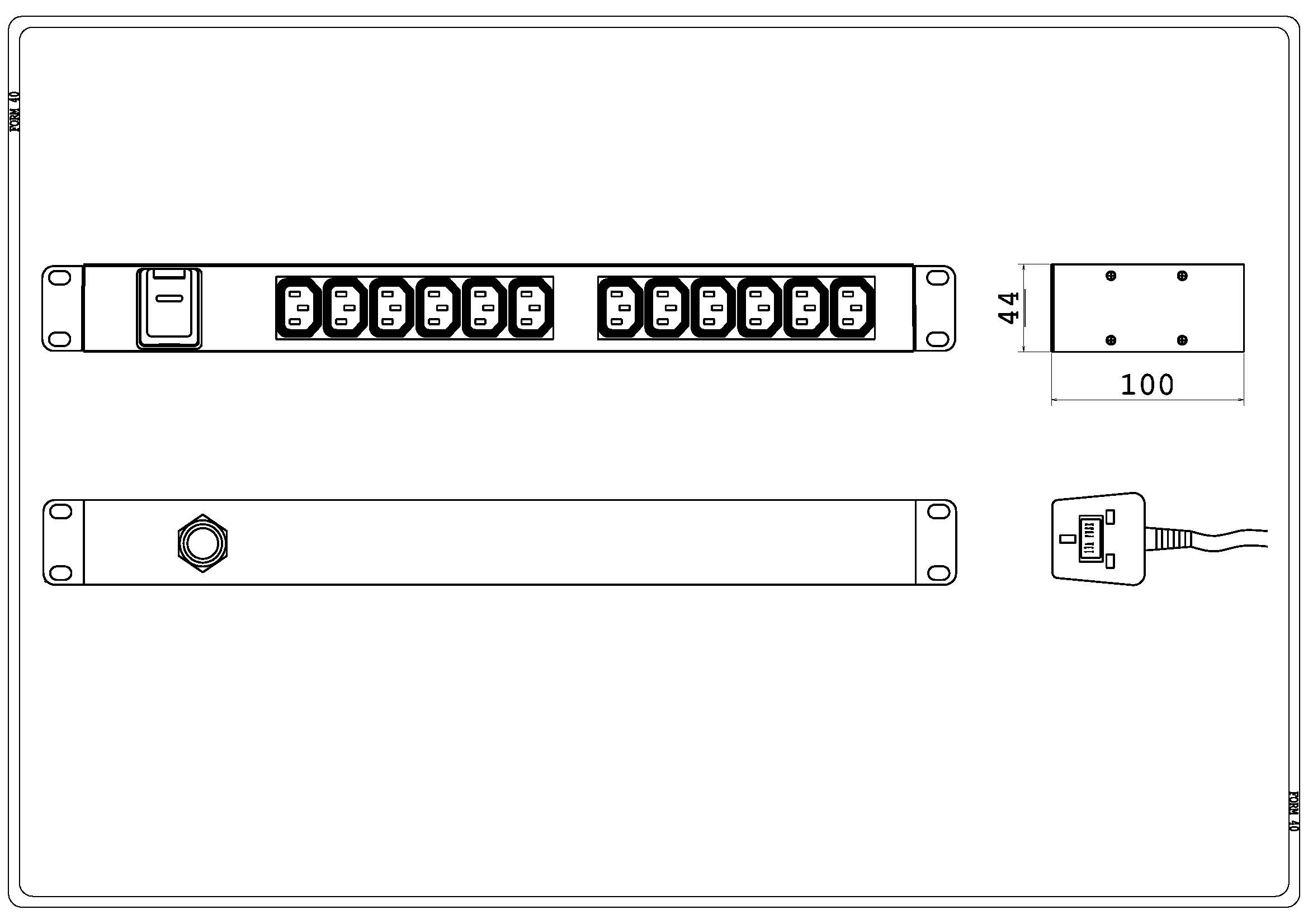

| Chassis Dimensions (HxWxD) | 44mm x 435mm x 100mm |
| Shipped Weight | 4lbs (1.81kg) |
