G2112
Part #: G2112
Model Number:
MG00XEA0-12UKR3-2PS6B2A10-S
Category:
Basic
Sub Category:
Standard
Power Configuration:
16A, 230V, 3.6kW
Physical Configuration:
39in / 978mm, Vertical
Product Summary:
rPDU, Basic Standard, 16A, 230V, 3.6kW, Vertical, (12) BS1363, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
Plug Form:
1P+N+E (IP44)Receptacle:
BS1363 (Quantity: 12)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Quantity Of Inputs | 1 |
| Voltage | 200-240V |
| Current | 16A |
| VA per Input (Load Capacity) | 3.6kW (230V) |
| Frequency | 50/60Hz |
| Over Current Protection | None |
| Switch | Green neon with protective cover |
| Power Cable Wire Gauge | 2.5mm² H07RN-F |
| Power Cable Length | 3m |
| Plug Type | IEC60309 1P + N + E, 16A, 250V, Splashproof IP44 |
| Receptacle/Socket Type #1 | BS1363 |
| - Quantity on Face | 12 |
| - Style | Individual - Right Hand Angled |
| - Maximum Output per Receptacle/Socket | 13A |
| - Voltage per Receptacle/Socket | 230V |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 39in / 978mm Vertical Rackmount |
| GE Vertical Mounting Bracket | Yes |
| Toolless Mounting Hardware - Center to Center Spacing | 933.45mm |
| Product Warranty | 5-year limited warranty |
| Certification/Agency Approvals | CE Marked |
| Certification/Agency Approvals | UKCA Marked |
| Certification/Agency Approvals | Complies with IEC 62368-1 (DOC Available) |
| Certification/Agency Approvals | Complies with EN 55032 and EN 55035 |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | Cم Mark |

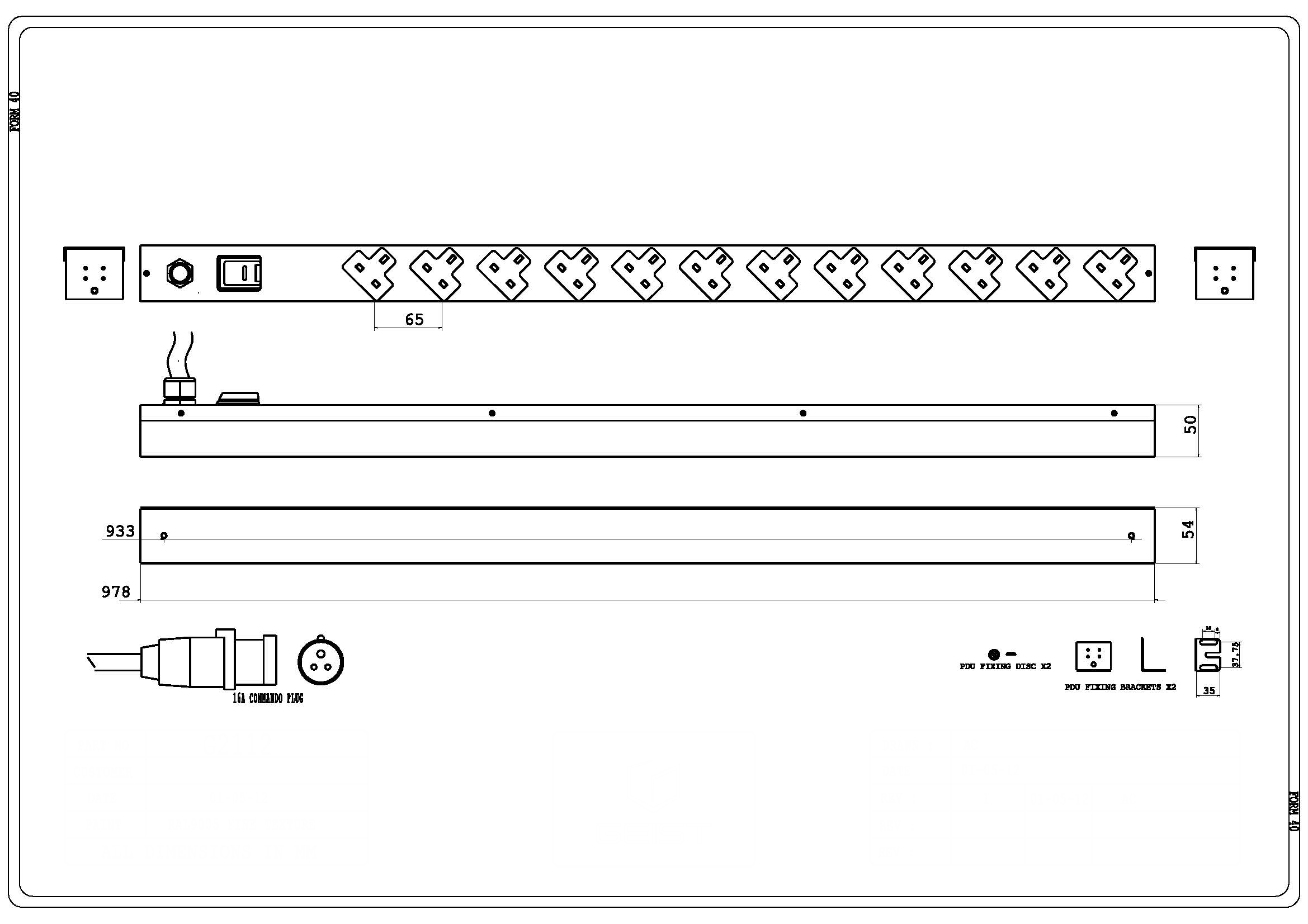

| Chassis Dimensions (LxWxD) | 978mm x 54mm x 50mm |
| Shipped Weight | 10lbs (4.54kg) |
