Vertiv Geist rPDU


27986

Part #: 27986
Model Number:
BRECN162-0020/16
Category:
Metered
Sub Category:
Standard
Power Configuration:
20A, 120V OR 208V, 1.9 or 3.3kW
Physical Configuration:
19in / 483mm, Horizontal
Product Summary:

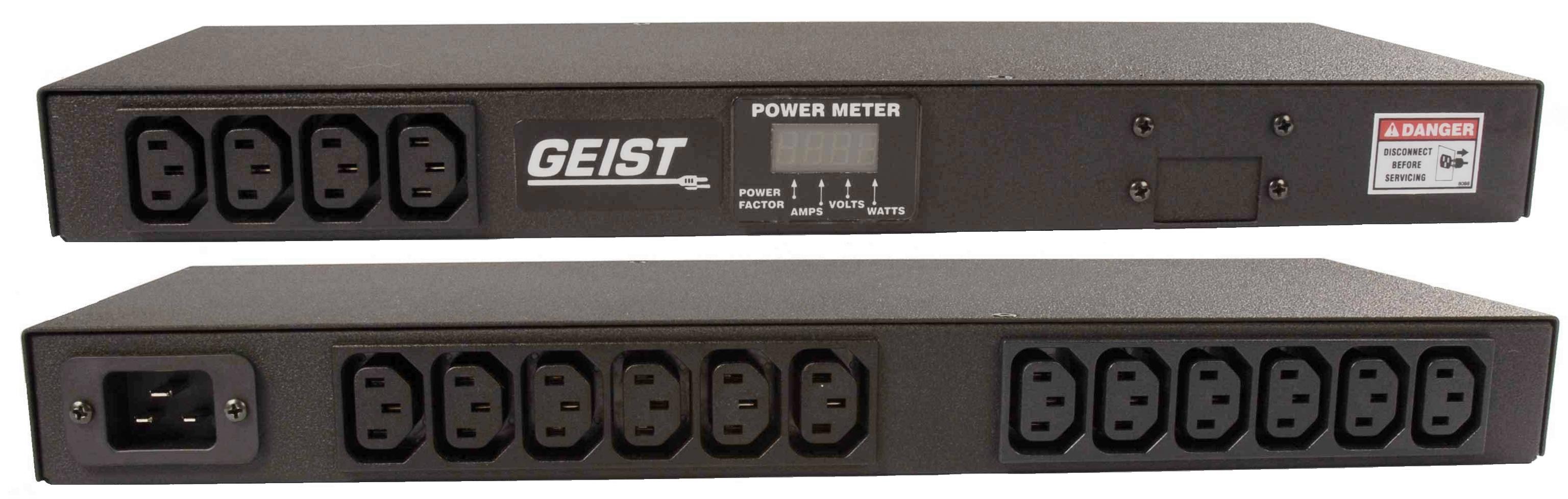

rPDU, Metered Standard, 20A, 120V OR 208V, 1.9 or 3.3kW, Horizontal, (16) IEC C13, C20, Black Powder Coat.
Monitoring:
Power - Local (A, V, W, PF)
Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Plug Form:
C20C20
Receptacle:
IEC C13IEC C13 (Quantity: 16)
Chassis Color Options:
To discuss color options, contact your local sales representative.

Product Specification and Options

System Features
MonitoringPower - Local (A, V, W, PF)
Digital RMS Scrolling Power Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Monitoring Level 1Aggregate - Total Unit Monitoring
Quantity Of Inputs1
Voltage100-120V or 200-240V
Current20A
VA per Input (Load Capacity)1.9 (120V) or 3.3kW (208V)
Frequency50/60Hz
Over Current ProtectionNone
SwitchNo
Plug TypeIEC60320 C20 Power Inlet (cord sold separately)
Receptacle/Socket Type #1IEC C13
- Quantity on Face4
- Quantity on Rear12
- Style1 Bank of 4; 2 Banks of 6
- Maximum Output per Receptacle/Socket15A per receptacle bank
- Voltage per Receptacle/Socket120V or 208V
Continuous Operating Temperature Range10-45C / 50-113F
Heavy Steel - Powder Coat FinishBlack
Configuration19in / 483mm Horizontal Rackmount
Adjustable Mount BracketsYes
Country of OriginUSA, TAA Compliant and Buy American Act COTS Compliant
Product Warranty5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Certification/Agency ApprovalsRoHS Compliant
Certification/Agency ApprovalsUL & c-UL Listed 60950
Chassis Dimensions (HxWxD)1.72in x 17in x 6.50in
Shipped Weight4lbs (1.81kg)
