GBB15 POE Product Family

The GBB15 POE is a self-contained unit with on-board temperature and humidity/dew-point sensors along with built-in POE. It has an input capacity of four external sensors.

The GBB15 POE allows users to keep an eye on remote conditions from a secure Web interface and receive SNMP, email, and text message alert notifications when user-adjustable thresholds are exceeded.

The Web interface provides an overview of environmental measurements with real time sensor data. No software required! Securely access the graphical user interface from a Web browser. All measurements are logged allowing users to collect data for trending and capacity management. The GBB15 POE offers flexible access rights and security settings with up to three access account levels. It offers secure access through the Web and supports HTTP and HTTPS protocols. Up to 50 customizable alarms can be configured with alarm escalations per sensor.

Up to four digital sensors can be connected using a standard splitter. A variety of optional plug-and-play sensors are available for use with the GBB15 POE including but not limited to, temperature, humidity, airflow, power usage and more.

The GBB15 POE is a compact solution weighing less than half a pound and sized to fit in a 1U space at 5.25”L x 1.75”H x 1.5"W, which is perfect for tight installments. With an operating range of -25° to 80° Celsius (-13° to 176° F), the GBB15 POE can be used to monitor temperature, humidity and other environmental parameters in a variety of applications including IT, telecom, healthcare, food supply and others.

Built-in Power over Ethernet (POE) converges power and data in between the switch and the GBB15 POE, eliminating the need for electrical wiring.  Power adapter is provided for applications without POE support.

SNMP, Email, & SMS Alerts

Trigger escalating alarms if temperature or humidity fall outside of specified parameters via SNMP (v1, v2c), email and SMS messages (email to SMS gateway). For example, specify an email notification to one or more users at 70° F, add another layer of personnel to the email alarm at 80° F, add your third party contractor at 85° F. Users may specify up to 50 alarms per unit.

Interface Network IP Cameras

The Web page interfaces up to four IP cameras (not included), allowing you a quick view of remote conditions, especially useful in event of alarm.

No Software Required

The GBB15 POE is simple to install and use, requiring no special software other than a standard Web browser. The GBB15 POE connects to an Ethernet network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web browser and can be password protected with three access account level types: Administrator, Control, View Only. From within an Intranet or over the Internet, the user can securely access the monitor by entering its IP address.

Specifications

On-board Sensors:
Temperature: -13 °F to 176 °F, (-25 °C to 80 °F) +/- 0.5 °C
Humidity: 5% to 95%, +/- 2%
Dewpoint: -47 °F to 174 °F (-44 °C to 79 °C)

Power: 6VDC (See chart below)
Ethernet: 10/100 Mbps, RJ-45 receptacle
Real Time Clock (RTC) with power backup
Two digital sensor ports (capacity of 4 external sensors)
Reset IP push-button: restores factory defaults
Warranty: 3 years

Power Supply

Product Number Input Plug Type Input Power Output Power
GBB15-POE North America (NEMA 5-15) 100-240V, 50-60HZ 6VDC, 2A, 12W
GBB15-UK POE British Standard (BS1363)
GBB15-UN POE North America (NEMA 5-15)
British Standard (BS1363)
Europlug (CEE7/16)
GBB15-NPS POE No Power Supply No Power Supply No Power Supply


Software Features

HTTP/HTTPS: web access
Alarms: high/low values, multiple thresholds per sensor
ESMTP: email alerts, ESMTP auth
SNMP (v1, v2c): gets, trap and clear alerts, MIB
Paging: email to pager proxy
XML: meta-tagged sensor values, alarms, config
Syslog: send debug messages to Syslog server
Access-control: 3 access levels (admin, control, view only)
Web cams (optional): Up to four can be displayed

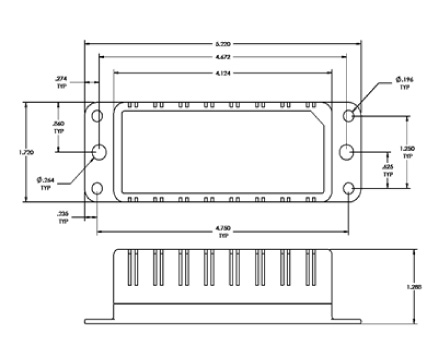

Chassis Dimensions:

1.75"H x 5.25"W x 1.5"D
FCC Part 15 Class A Conformance

GBB15 POE Spec Sheet

Instruction Guide GM1137.pdf

GBB15 Quick Setup Guide
