Low Profile Breakers

Low Profile Breakers

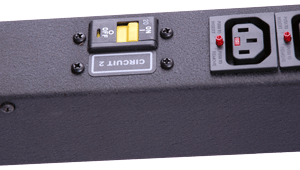

Geist’s low profile breakers reduce the PDU depth by over 40% compared to traditional breakers. The slimmer design protects against electrical overloads and allows the PDUs to be easily installed in data center cabinets with limited space.

Geist offers low profile breakers as a standard feature on select basic and intelligent PDU configurations (see table below). Customers may choose to incorporate the smaller breaker design on applicable custom PDU orders.





Current Monitoring Unit Level

Model # Amps & Volts, kW Receptacles Plug Rackmount Length Monitoring
XPBM420-103IZ6TL6-LP 30A 208V
4.9kW
C13 Qty 36
C19 Qty 6
L6-30P 66 in Current Local/ Remote
XPWM449-103MB1TL21-LP 30A 120/208V WYE 8.6kW C13 Qty 36
C19 Qty 6
NEMA 5-20R Qty 2
L21-30P 72 in Current Local/ Remote
XPWM428-103IZ6TL15-LP 30A 208V DELTA
8.6kW
C13 Qty 36
C19 Qty 6
L15-30P 72 in Current Local/ Remote

Power Monitoring Unit Level

Model # Amps & Volts, kW Receptacles Plug Rackmount Length Monitoring
RCXW300-103PN6TL6-D-LP 30A 208V
4.9kW
Locking C13 Qty 24
Locking C19 Qty 6
L6-30P 72 in Power-Local/Remote+ Environmental Ports
RCXW308-103PN6TL21-D-LP 30A 120/208V WYE 8.6kW Locking C13 Qty 24
Locking C19 Qty 6
L21-30P 72 in Power-Local/Remote+ Environmental Ports
RCXW308-103PN6TL15-D-LP 30A 208V DELTA
8.6kW
Locking C13 Qty 24
Locking C19 Qty 6
L15-30P 72 in Power-Local/Remote+ Environmental Ports
GRCXW306-103PN6PS6-D-LP 32A 230V
7.3kW
Locking C13 Qty 24
Locking C19 Qty 6
2P+E 72 in Power-Local/Remote+ Environmental Ports
GRCXW303-103PN6PS56-D-LP 32A 230/400V WYE 22.1kW Locking C13 Qty 24
Locking C19 Qty 6
3P+N+E 72 in Power-Local/Remote+ Environmental Ports

Basic Non-Surge

Model # Amps & Volts, kW Receptacles Plug Rackmount Length Monitoring
GXPB426-103IZ6PS6-LP 32A 230V
7.3kW
C13 Qty 36
C19 Qty 6
2P+E 66 in NA
GYB423-103IZ6PS56-LP 32A 230/400V WYE 22.1kW C13 Qty 36
C19 Qty 6
3P+N+E 66 in NA

Low Profile Breakers Spec Sheet
